Terminology

Terminology

Per-pixel image classifications: Classifying each pixel of an image.

Useful for:

• Scene labeling for autonomous driving
• Inferring relationships between objects in an image.

Terminology

Land-Use Classification: Classifications of what a given tract of land is used for.

Potential uses:

• Approximating crop yields by year
• Tracking changes in land use
• Tracking changes in forestry and vegitation

Terminology

Orthoimagery: An aerial photograph where corrections have been made for various displacements such as building tilt and scale variations caused by terrain relief.

Terminology

Convolutional Neural Networl (CNN): a type of neural network where the connectivity pattern of it's neurons is inspired by the organization of the visual cortex of an animal.

Useful for:

• Scene labeling for autonomous driving
• Inferring relationships between objects in an image
• Whole-image classification

Introduction

Introduction: Technology, Imagery and Data

• Cost of satelites and drones is decreasing
• Cost of orthoimagery decreasing
• Ammount of availiable orthoimagry increasing
• Ammount and quality of labeled or annotated orthoimagery has not kept pace

Introduction: Availiable Data

• Provides imagery spanning the majority of the continental United States
• Imagery captured at 1 meter Ground Sample Distantce (GSD)
• Imagery consists of red, green, blue, and near-infrared image layers

Introduction: Availiable Data

• Land-Use classifications for the continental United States
• Low resolution accuracy compared to NAIP imagery.
  • 1 NASS pixel represents a 50 square meter area in the NAIP Imagery
• Poor quality classifications

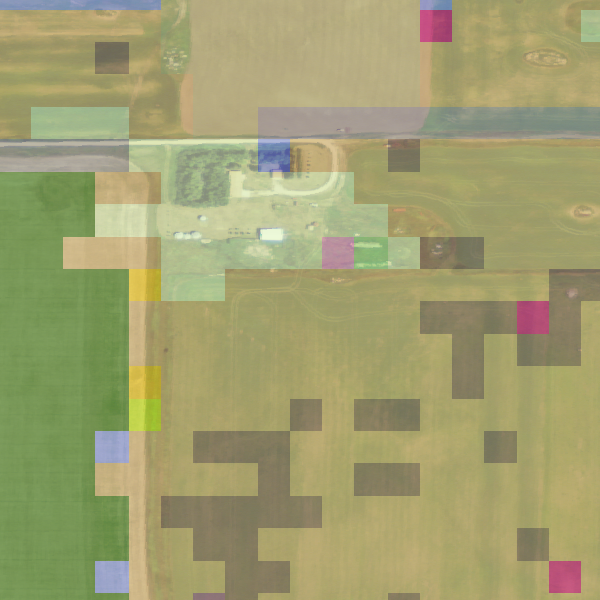

Introduction: NASS - Mislabeled Pixels

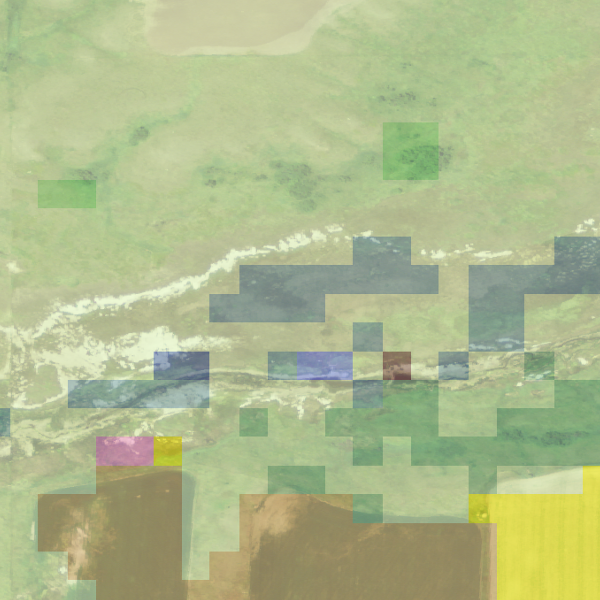

Introduction: NASS - Clipped Organic Features

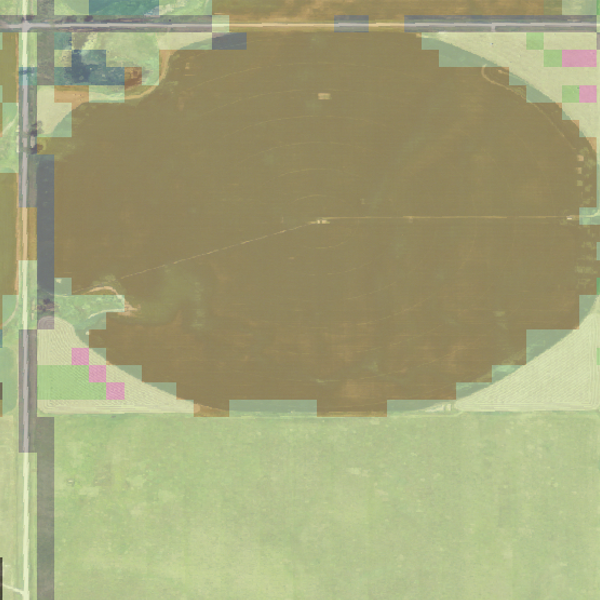

Introduction: NASS - Poor Representation of Fine Features

Introduction: Goal

Create a model which can efficiently produce higher resolution labeled orthoimagery .

Previous Work

Previous Work

• Focused on identifiying roads or buildings.
• Apparently little research into identifying crops or other agricultural features
• Per-pixel classifications of orthoimagery fall under the realm of scene recoagnition.
• The SegNet model provides a reletively new approach to scene recoagnition.

Previous Work: SegNet

• Deep Convolutional Encoder-Decoder Network
• Produces good results when applied to CamVid dataset.

Previous Work: SegNet Demo

Previous Work: SegNet

• Deep Convolutional Encoder-Decoder Network
• Produces good results when applied to CamVid dataset.
  • Produces high accuracy labels
  • Generates classifications in real-time

Data Set Preprocessing

Data Set Preprocessing: Data Sets

• National Agricultural Imagery Program (NAIP) Imagery
• National Agricultural Statistics Service (NASS) Land-use classifications

Data Set Preprocessing: Acquisition

• NAIP Imagery Downloaded via the EarthExplorer tool hosted by The United States Geographical Services
• The Geospacial Data Abstraction Library (GDAL) tool set is used to generate a set of shapefiles using the NAIP Imagery
• These shapefiles are uploaded to the NASS tool CropScape and are used to select regions for which to download land-use classification data.

Data Set Preprocessing: Resizing

• NASS images are warped with gdalwarp to match the resolution of the corresponding NAIP image.
  • The NASS images are georectified
  • When resized with gdalwarp, pixels are not shifted or offset

Data Set Preprocessing: Slicing

• NAIP and NASS images are sliced into 256x256 pixel swatches
• Each NAIP image layer is stored as a separate greyscale PNG image
• The NAIP red and near infrared layers are used to compute a Normalized Difference Vegetation Index (NDVI) layer scaled from 0 to 255
• This NDVI layer is stored in place of the near infrared layer.

Data Set Preprocessing: Recategorization

• NASS Land Use Classifications contain 255 possible labels. These are simplfied down into 5 groups:
  • Forestry
  • Developed
  • Field
  • Background

Data Set Preprocessing: Recategorization

Model

Model: SegNet

Kernel Size 7x7

Model: Convolutions and Kernel Size

Example with 3x3 kernel size

Kernel size impacts how fine of features will be recoagnized.

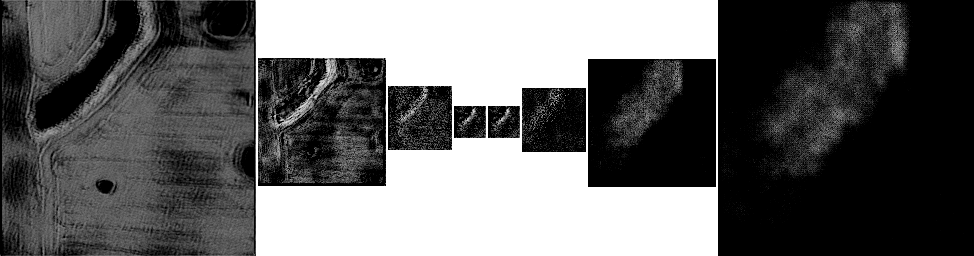

Resulting image is called a feature map or feature window.

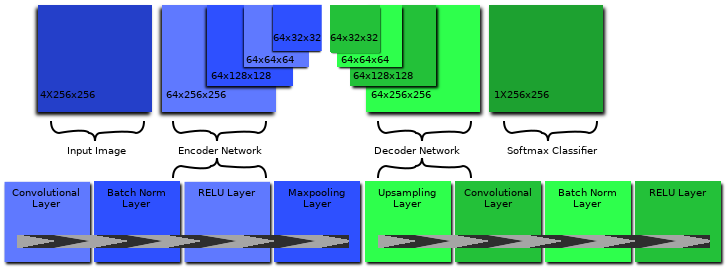

Model: SegNet

Model: Max Pooling Operation

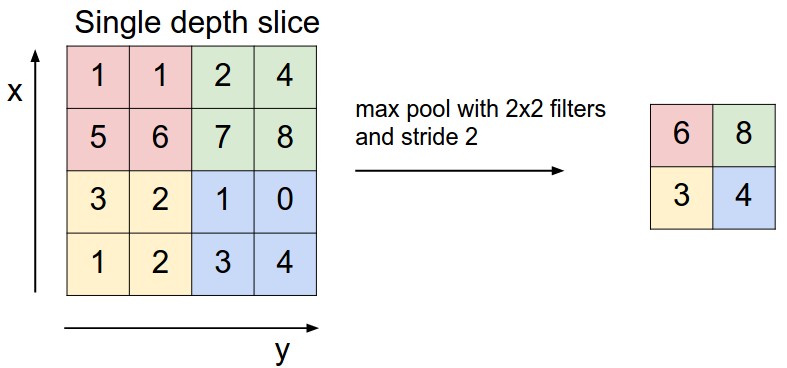

Down samples the feature window

SegNet stores the indices of the maximum values for later

Model: SegNet

Max pool + Indice Unraveling

Model: SegNet Variants

Kernel Size 3x3 and 5x5

Training & Evaluation

Training

• Trained on 90% of availiable image swatches
  • approx. 72,000 image swatches
• Batches of 15
• 25 Epochs
• Checkpoints are saved every 100 steps

Evaluation

• Evaluation is done on the remaining 10% of availiable image swatches
  • approx. 8,000 image swatches
• The checkpoint with the highest evaluation accuracy is selected

Analysis

Analysis: Evaluation Accuracy

Results: Not good?

Analysis: Accuracy of training labels

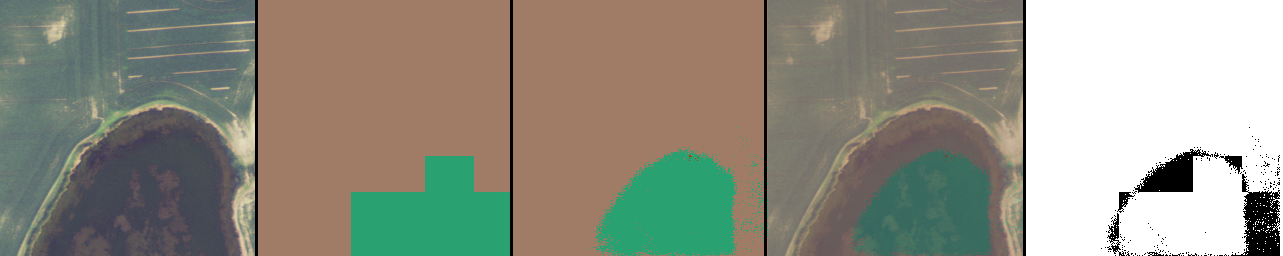

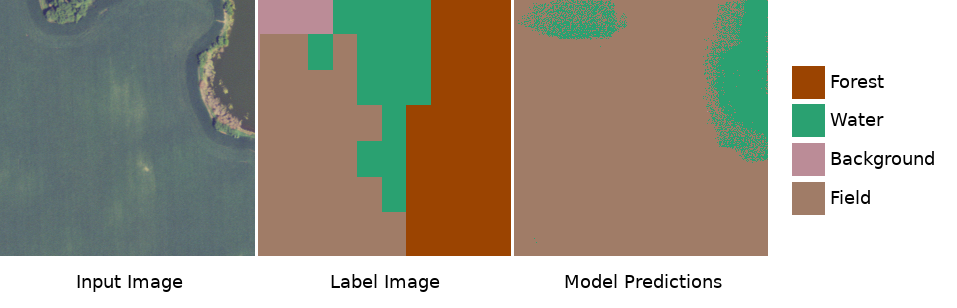

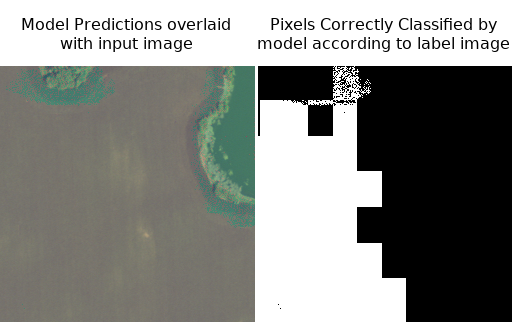

Observed that the model often produces better representations of features than the NASS classifications

Future Work

Future Work

• K-Fold Cross Validation
• Find a way to manage the discrepancy between the label dataset and classification
  • Find which fields in the NASS classifications were ground truthed
    • Ground truthing is based on the June Agricultural Survey
    • Unfortunately this information is classified.
  • Find a new classification data set?
    • National Land Cover Database (NLCD)
      • Less focused on agriculture
