Terminology

Terminology

Per-pixel image classifications

Useful for:

• Scene labeling
• Inferring relationships in an image.

Terminology

Land-Use Classification

Potential uses:

• Approximating crop yields by year
• Tracking changes in land use
• Tracking changes in forestry and vegetation

Terminology

Terminology

Useful for:

• Scene labeling
• Image classification

Terminology

Example: Normalized Difference Vegetation Index(NDVI)

$ NDVI = \frac{NIR-RED}{NIR+RED} $

Introduction

Introduction: What do CNNs learn?

Are there certain kinds of patterns they cannot learn, or learn too slowly to be effective?

Does the inclusion of image layers that are generated from the original source image help or hurt the model?

Introduction: Technology, Imagery and Data

• Cost of satellites and drones is decreasing.
• Cost of orthoimagery decreasing
• Amount of availiable orthoimagry increasing
• Amount and quality of labeled or annotated orthoimagery has not kept pace

Introduction: Availiable Data

• Provides imagery spanning the majority of the continental United States
• 1 meter Ground Sample Distance (GSD)
• Red, Green, Blue, and NIR image layers

Introduction: Availiable Data

• Continental United States
• Low resolution accuracy compared to NAIP imagery.
  • 1 NASS pixel represents a 50 square meter area in the NAIP Imagery
• Poor quality classifications

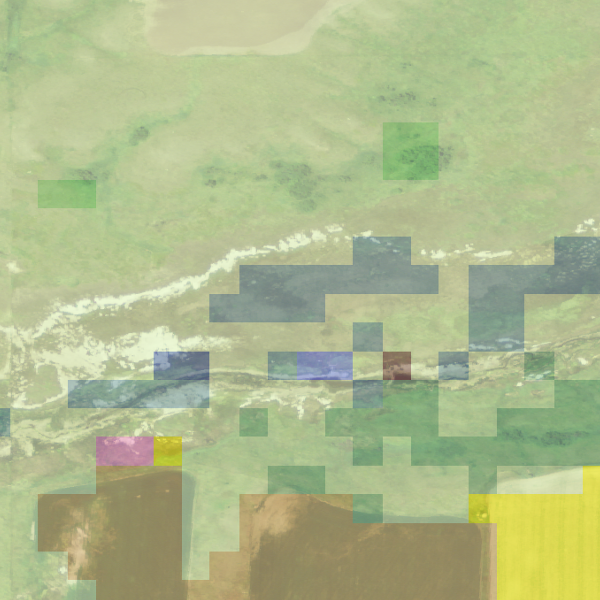

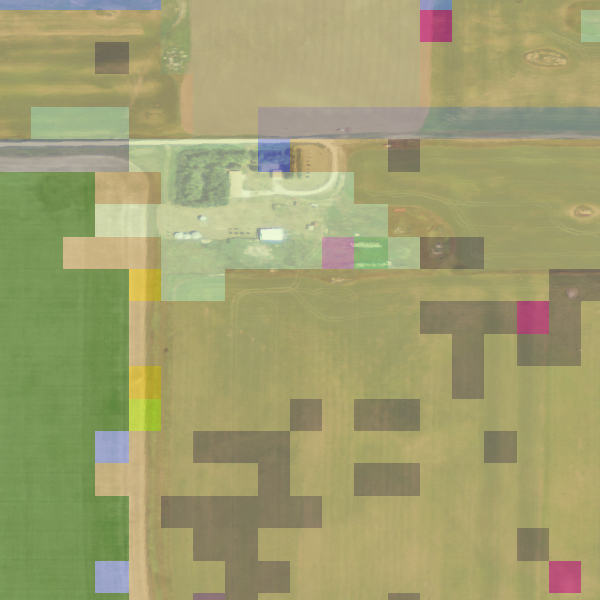

Introduction: NASS - Mislabeled Pixels

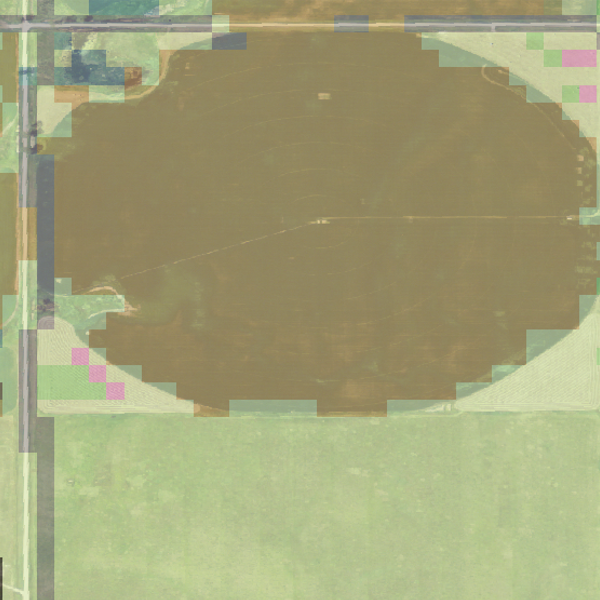

Introduction: NASS - Clipped Organic Features

Introduction: NASS - Poor Representation of Fine Features

Introduction: Goal

Test whether the inclusion of several different auxilary image layers, generated from the base RGB, NIR, and NDVI layers, serves to help or hurt the classification accuracy and qualitative quality of the model's classifications.

Previous Work

Previous Work: Selecting a CNN Model

• Focus on roads or buildings.
• Little research into identifying agricultural features
• Per-pixel classifications of orthoimagery fall under the realm of scene recognition.
  • Orthoimagery features tend to lack well defined boundaries
• The SegNet model provides a relatively efficient and effective approach to scene recognition.

Previous Work: SegNet

• Deep Convolutional Encoder-Decoder Network
• Produces good results when applied to CamVid dataset.

Previous Work: SegNet Demo

Data Set Preprocessing

Data Set Preprocessing: Data Sets

• Images: NAIP Imagery
• Ground Truths: NASS Land-use classifications

Images clipped into 256x256 swatches

Data Set Preprocessing: Data Sets

Ground Truth data simplified into two classes: Water, and Not-Water

Data Set Preprocessing: Gradient Image Layer

Using a sliding window, a gradient is computed by taking the scaled value between 0 and 255 of the largest difference in pixel intensity.

The sliding window operates over one of the original image layers to produce an intensity value for each pixel in the image, excluding a small border.

Data Set Preprocessing: Gradient Image Layer

• Input Image Layer: NDVI
• Window Size: 8x8 pixels
• Output Image Size: 248x248 pixels

Data Set Preprocessing: Regression Image Layer

Using a sliding window, take the slope of the line calculated by taking the linear-regression between two bands.

The sliding window operates over two of the original image layers to produce an intensity value for each pixel in the image, excluding a small border.

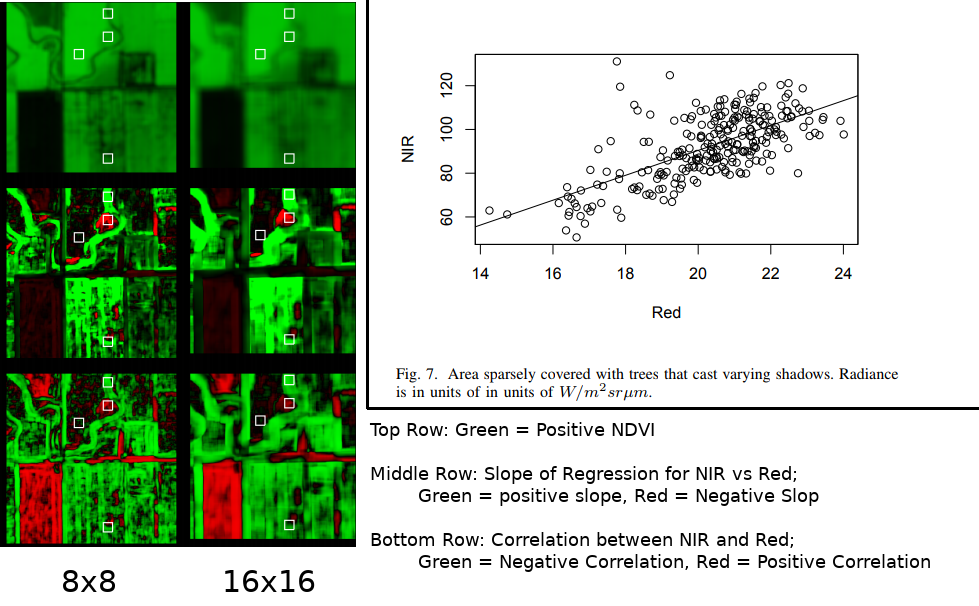

Data Set Preprocessing: Regression Image Layer

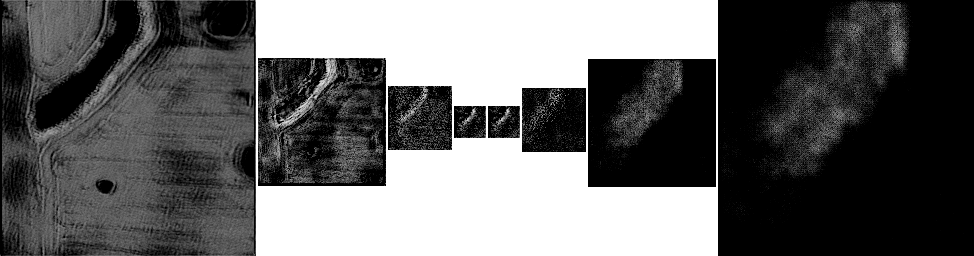

Implementation based off of the paper Multi-scalar Analysis of Geospacial Agricultural Data for Sustainabiliy which introduces a means of allowing larger sliding windows without the computational cost of scanning for them.

Data Set Preprocessing: Regression Image Layer

• Input Image Layer 1: Red
• Input Image Layer 2: NIR
• Window Size: 8x8 pixels
• Output Image Size: 248x248 pixels

Data Set Preprocessing: Data Set Size

Dataset of 2,000 images.

Generating the aux images takes ~1.5 hours per type.

Training model takes 4-6 hours for 3 epochs.

Model

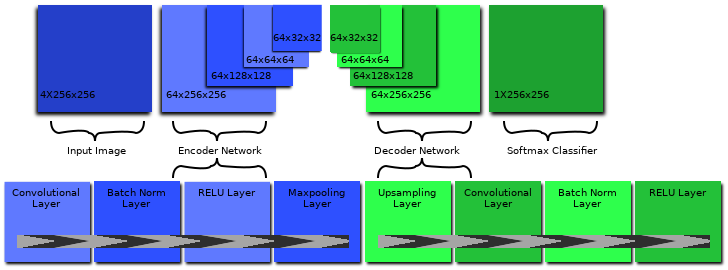

Model: SegNet

Kernel Size 7x7

Model: SegNet

Max pool + Indice Unraveling

Example with 4 down-sample & up-sample layers

Model: Custom SegNet Variant

Kernel Size 3x3

3 down-sample & up-sample layers

Model Variants

• Control (No Aux Image Layer): Our control model. The base Custom SegNet Variant previously described. Takes RGB, NIR, and NDVI image layers as input.
• Gradient Model: A modified version of the control that takes an additional layer generated via the Gradient process previously described.
• Regression Model: A modified version of the control that takes an additional layer generated via the Regression process previously described.

Training & Evaluation

Training

• Trained on 90% of availiable image swatches
  • 1,800 image swatches
• Batches of 15
• 3 Epochs
• Checkpoints are saved every 100 steps

Evaluation

• Evaluation is done on the remaining 10% of availiable image swatches
  • 200 image swatches
• The checkpoint with the highest evaluation accuracy is selected

Special Note

Training and Testing sets are generated once and then remain the same for all models.

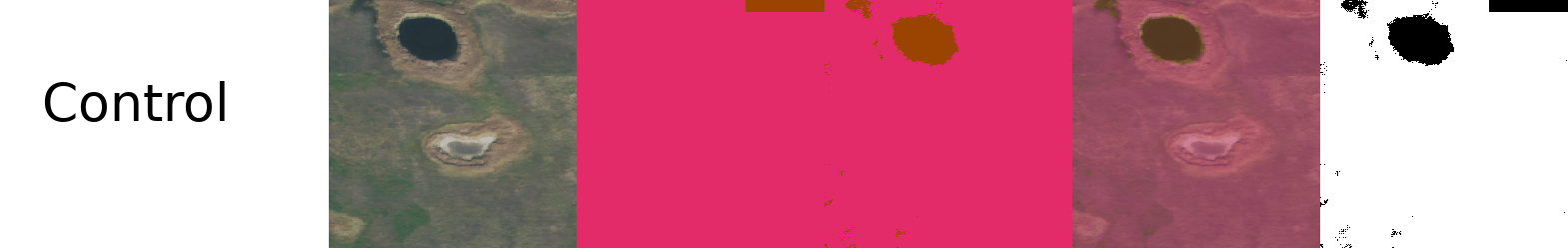

Analysis

Analysis: Evaluation Accuracy

93% of the data set is Not-Water

Analysis: Per-Class Evaluation Accuracy

93% of the data set is Not-Water

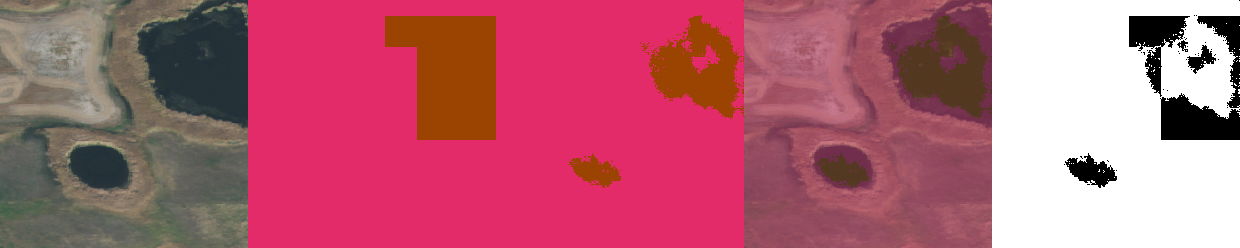

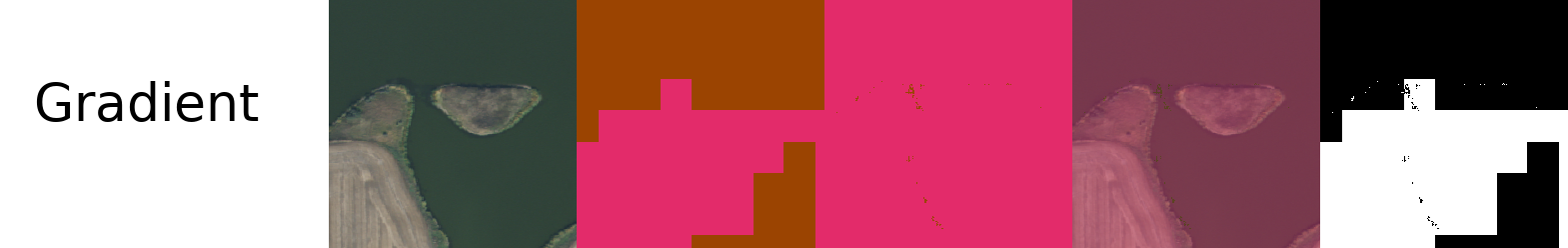

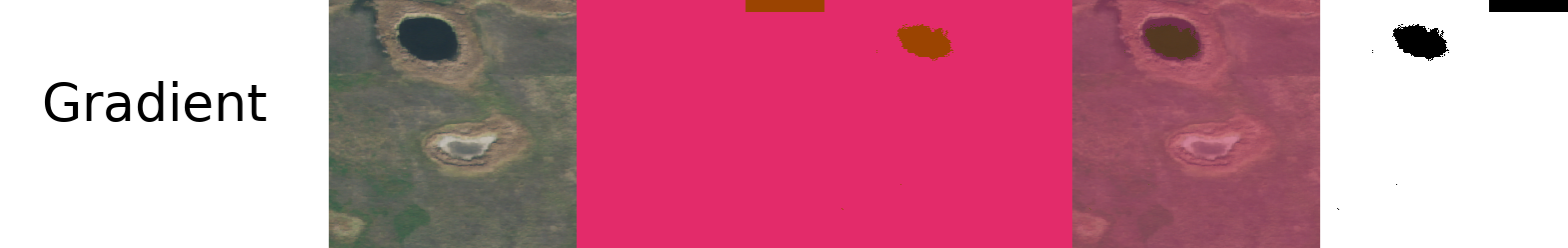

Analysis: Gradient Model

Per-class Not-Water accuracy at the cost of per-class water accuracy.

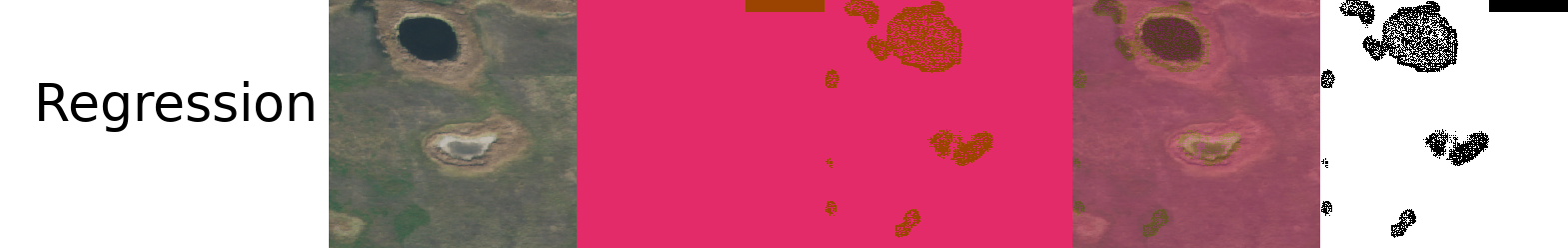

Analysis: Regression Model

Per-class Water Accuracy at the cost of per-class not-water accuracy.

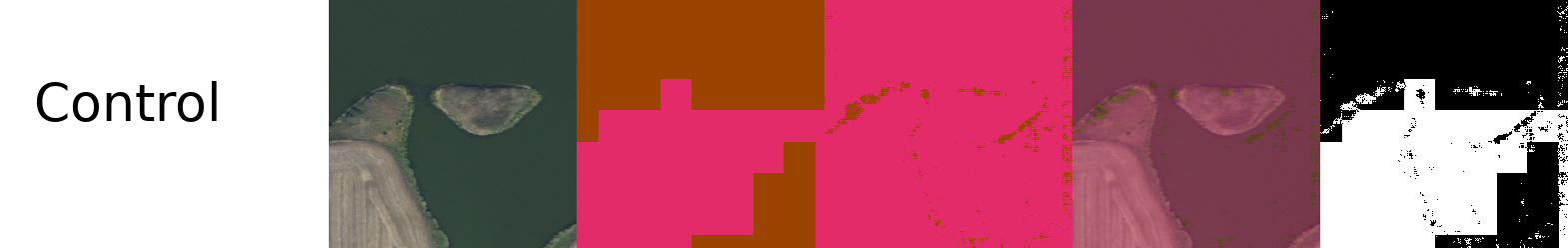

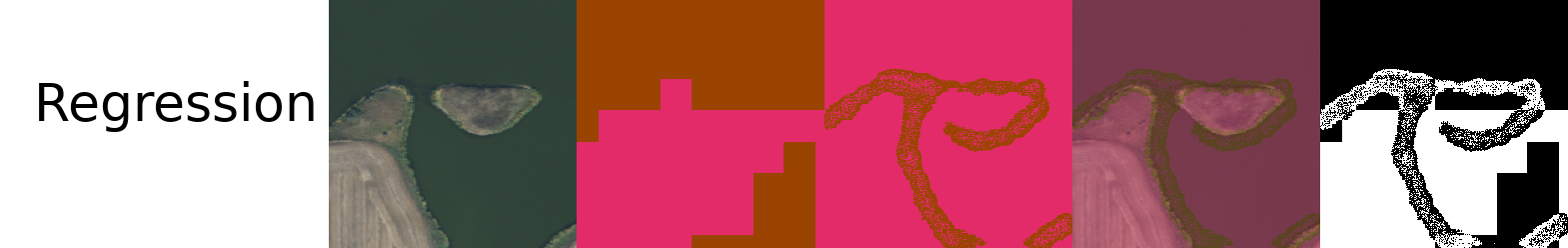

Analysis: Regression Model

The regression model's water classifications tend to respond strongly to places where there is lots of vegetation along the coast of a water body.

Analysis: Regression Model
